25 kVA Transformer Price: Cost Factors, Voltage Options and Fast Delivery Checklist

When purchasing a 25 kVA transformer, whether for a small utility extension, agricultural pump, residential development, or industrial application, understanding the underlying price factors is essential. A 25 kVA transformer is one of the most common distribution sizes globally, but quotations can vary significantly based on specifications, required delivery speed, and shipping methods.

Voltage Options and Phase Configurations

The primary and secondary voltage requirements directly impact the design and cost of the transformer. A standard single phase pole mounted transformer stepping down from 7200V or 14400V to 120/240V will be highly cost-effective due to standardized, high-volume manufacturing. However, if the project requires a dual-voltage primary, specialized taps, or a three-phase configuration (which essentially involves three separate coil assemblies within one tank), the manufacturing cost increases.

Winding Material: Copper vs. Aluminum

Like larger units, the choice between copper and aluminum windings affects the 25 kVA transformer price. Aluminum is lighter and less expensive, making it the preferred standard for most distribution networks. Copper, offering higher conductivity and a more compact core-coil assembly, carries a premium price tag. For a 25 kVA unit, specifying copper can increase the base price by 15% to 30%, depending on current commodities markets.

Mounting Method: Pole vs. Pad Mounted

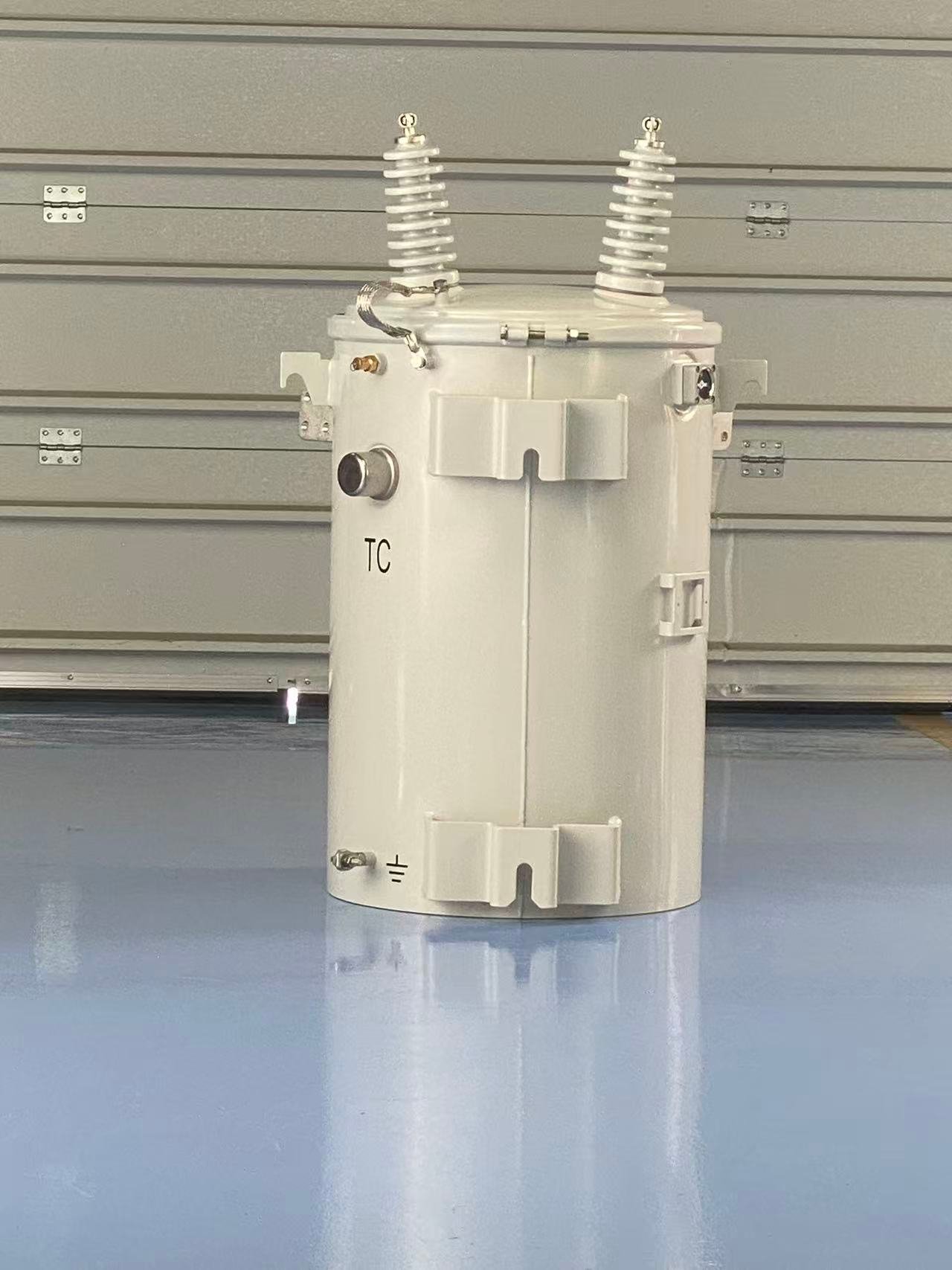

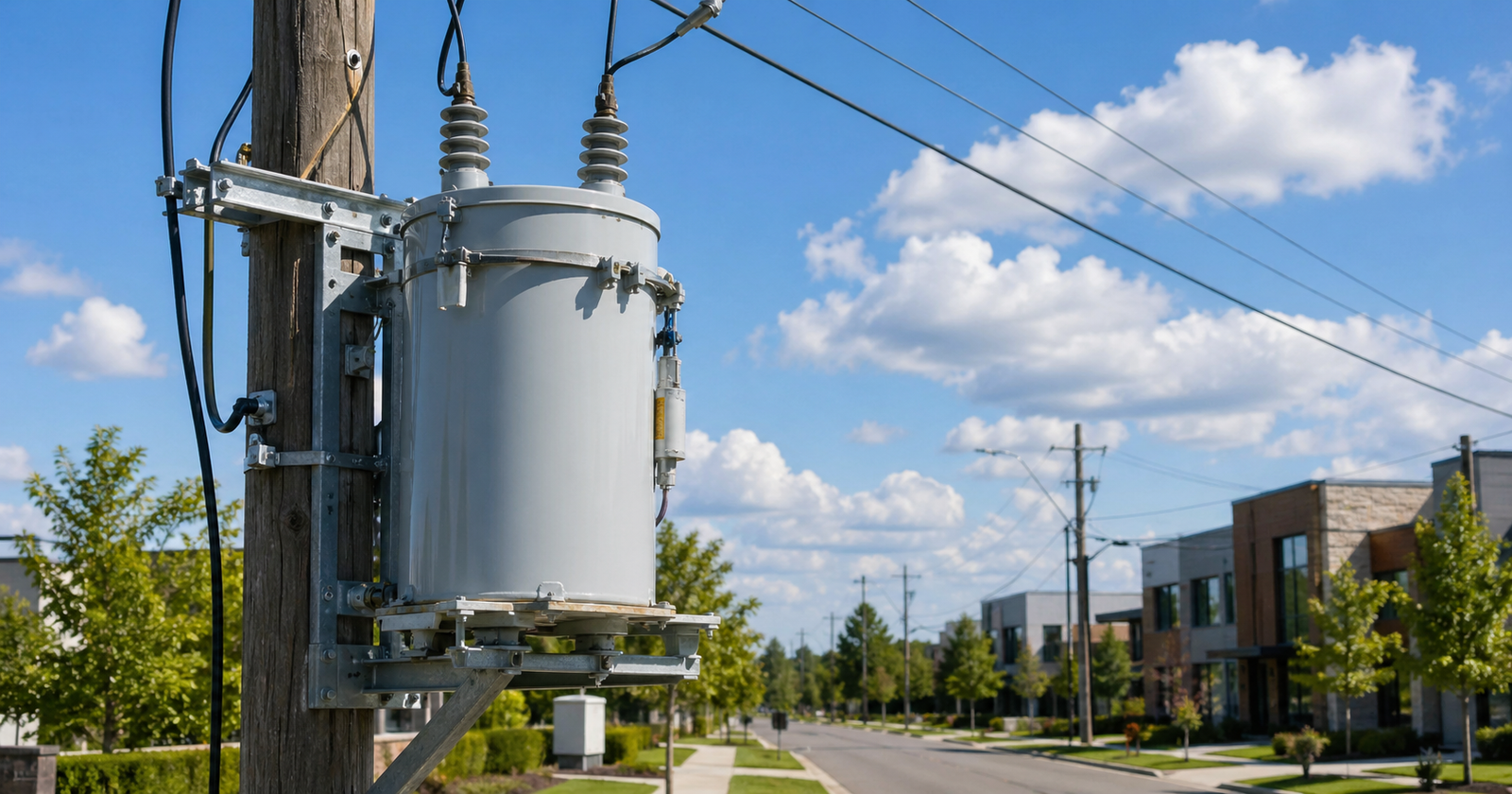

A 25 kVA pole mounted transformer is generally less expensive than a 25 kVA pad mounted transformer. Pad-mounted transformers require a robust, tamper-proof, locked steel cabinet since they sit at ground level in areas accessible to the public. The additional steel enclosure, specialized high-voltage dead-front components, and complex locking mechanisms add to the overall cost of pad-mounted designs compared to simple overhead cylindrical tanks. For a deeper breakdown of overhead unit costs, see our Pole Mounted Transformer Price Guide 2026. If you are sizing for agricultural loads, refer to our Farm Transformer Guide.

Efficiency Standards and Regulatory Compliance

Modern transformers must adhere to stringent efficiency standards, such as DOE 2016 in the United States or CSA in Canada. These high-efficiency designs require premium-grade electrical steel (like amorphous core or high-grade silicon steel) to minimize no-load (core) losses. Transformers destined for regions with lower regulatory efficiency thresholds may have a lower initial capital cost, but higher lifetime operational costs.

Accessories and Tank Materials

Standard accessories include basic pressure relief valves and lifting lugs. However, if your specification requires stainless steel tanks (essential for coastal or highly corrosive environments), specialized wildlife guards, CSP (Completely Self-Protected) internal fusing and breakers, or specific bushing configurations, the price will scale accordingly. CSP transformers cost more upfront but eliminate the need for external fuse cutouts and surge arresters.

Fast Production and Expedited Timelines

When a transformer fails, replacing it becomes an emergency. Standard lead times for a 25 kVA transformer can range from 8 to 14 weeks depending on factory backlog. However, expedited "fast-track" production is often available for an additional premium. Factories must reorganize their assembly lines, expedite raw material procurement, and pay overtime to meet urgent deadlines.

Shipping Cost and Air Freight Options for Urgent Projects

For international or long-distance domestic shipments, freight plays a massive role in the landed cost. A standard 25 kVA pole-mounted transformer weighs roughly 300 to 450 lbs (135 to 205 kg).

• Ocean Freight (LCL/FCL): The most economical choice for planned projects. Takes 3 to 6 weeks depending on the route.
• Domestic Trucking: Standard LTL (Less-Than-Truckload) freight is generally affordable but subject to regional logistics pricing.
• Air Freight: For critical emergencies, a 25 kVA transformer is light enough to be shipped via air freight. While air freight can deliver the unit globally in 3 to 7 days, the transportation cost may equal or exceed the cost of the transformer itself.

Fast Delivery Quotation Checklist

To get the fastest, most accurate quotation for your urgent 25 kVA transformer requirement, provide the factory with this precise information:

• Capacity & Phase: 25 kVA, Single-Phase or Three-Phase
• Mounting: Pole-mounted or Pad-mounted
• Voltages: Primary (e.g., 7200/12470Y) and Secondary (e.g., 120/240V)
• Protection Type: Conventional or CSP (Completely Self-Protected)
• Efficiency Standard: DOE 2016, CSA, or standard efficiency
• Delivery Deadline: Specify the "drop-dead" date the unit must be on site
• Shipping Method: Indicate if you require expedited air freight pricing or standard ocean/ground freight
