Delta and Wye Transformer Connections: How Victor Avoided a Wrong Pole or Pad Transformer Specification

When purchasing a three-phase transformer, many buyers believe that providing the capacity (kVA) and the primary/secondary voltages is enough to receive an accurate quotation. However, the internal wiring of a three-phase transformer is just as critical as its voltage rating. Victor Harris, a senior electrical engineer managing procurement for a large industrial park expansion, almost made a costly mistake by submitting an incomplete Request for Quotation (RFQ). His initial inquiry requested several 1500 kVA pad mounted transformers and 100 kVA pole mounted transformers, but he omitted a crucial detail: the delta and wye transformer connections.

Fortunately, Victor's supplier engaged in a rigorous engineering review before issuing a price, prompting Victor to consult with his local design institute. This intervention saved his company from purchasing equipment that would have failed to integrate with the local utility grid. This article explores how delta and wye connections work, why they are essential for specifying pole and pad mounted transformers, and how buyers can avoid common specification errors.

Why Victor Did Not Send a Three Phase Transformer RFQ Too Quickly

Victor was under intense pressure to finalize equipment procurement for the new industrial park. The project schedule was tight, and his procurement team urged him to blast out generic RFQs to multiple overseas suppliers to secure the lowest price quickly.

However, Victor knew from past experience that three-phase electrical distribution is highly complex. A transformer is not a generic commodity. If a transformer is manufactured with the wrong vector group or incompatible neutral grounding, it cannot be safely connected to the grid. In some cases, it can cause severe harmonic distortion, unbalanced phase voltages, or immediate catastrophic failure upon energization. Realizing the stakes, Victor paused the procurement process to thoroughly document the facility's grounding requirements and connection standards before engaging with manufacturers.

What Are Delta and Wye Transformer Connections?

In a three-phase electrical system, the transformer coils (windings) can be connected internally in different configurations. The two primary connection methods are Delta (Δ) and Wye (Y, also known as Star).

• Delta (Δ) Connection: The three windings are connected end-to-end in a closed loop, resembling a triangle (the Greek letter Delta). In a Delta connection, there is no neutral point. The voltage across each winding is equal to the line-to-line voltage. This configuration is highly reliable for power transmission and handles unbalanced loads and third harmonics exceptionally well.
• Wye (Y) Connection: One end of each of the three windings is connected together at a common central point, resembling the letter Y or a star. This central point forms the neutral (N). The Wye connection provides two voltage levels: line-to-line (between any two phases) and line-to-neutral (between any phase and the neutral point). It is the standard connection for providing power to commercial and residential end-users.

These connections can be applied independently to the primary (high voltage) and secondary (low voltage) sides of the transformer, resulting in common configurations such as Delta-Wye (Dyn), Delta-Delta (Dd), Wye-Wye (Yy), and Wye-Delta (Yd).

Why Delta or Wye Matters for Pole and Pad Mounted Transformers

For distribution transformers—whether pole mounted transformer units serving rural communities or pad mounted transformer units powering commercial facilities—the most critical function is safely stepping down utility voltage to usable consumer voltage.

The vast majority of distribution transformers utilize a Delta-Wye (Dyn) configuration. The primary side is wired in Delta, which provides a robust connection to the high-voltage utility grid, trapping third-harmonic currents to prevent them from circulating and causing interference. The secondary side is wired in Wye, establishing a solid neutral point that is securely grounded. This grounded neutral ensures safety and allows the transformer to provide both three-phase power for large motors and single-phase power (line-to-neutral) for standard lighting and appliances.

If Victor had accidentally ordered a Wye-Wye or Delta-Delta transformer for his industrial park, the lack of a proper secondary neutral or the inability to handle harmonic loads would have rendered the equipment useless for the facility's mixed electrical loads.

Primary Voltage, Secondary Voltage and Neutral Requirements

The specific voltage requirements of a project dictate the necessary connections. When specifying secondary voltage, buyers must explicitly state the line-to-line and line-to-neutral values. For example, in many regions, a standard specification is 400Y/230V. This means the secondary is Wye-connected (Y), delivering 400V between any two phases (acting as a three phase transformer for industrial loads) and 230V between any phase and the neutral (for standard office equipment).

The neutral requirement is paramount for safety. The secondary neutral bushing (typically designated as X0) must be solidly grounded at the transformer pad or utility pole. This grounding provides a safe path for fault currents and stabilizes the phase voltages during unbalanced loading conditions. If a buyer fails to specify the need for a neutral bushing, the manufacturer might build a Delta secondary, which cannot provide the line-to-neutral voltage required by most modern facilities.

Victor's Story: From Incomplete RFQ to Correct Transformer Specification

Victor's initial RFQ simply read: "Need (5) 1500 kVA pad mounted transformers and (10) 100 kVA pole mounted transformers. 11kV to 400V. 50Hz."

When he submitted this to TransformerGrid, the engineering team immediately responded with a technical clarification request. They asked for the required vector group (e.g., Dyn11, Yyn0) and the specific grounding arrangements required by his local utility. Victor realized he didn't have this information on hand. He had assumed "11kV to 400V" implied a standard configuration, but as the engineers explained, standard configurations vary drastically by country and utility provider.

Victor pulled the facility's single-line diagrams and realized the industrial park required a Dyn11 vector group for the pad mounted transformers to match existing parallel units, and specific neutral grounding resistors for fault protection. By clarifying these details upfront, Victor avoided ordering incompatible equipment.

Victor's Design Institute Perspective: From Connection Standards to Supplier Confidence

To ensure absolute compliance, Victor took the technical questions raised by TransformerGrid to the local design institute responsible for the industrial park's electrical architecture. The lead design engineer commended Victor for confirming the vector group before procurement.

The institute explained that grid operators have strict standards for how transformers interact with the distribution network. A transformer with the wrong connection group could cause massive circulating currents if operated in parallel with the grid, leading to catastrophic overheating. The fact that the overseas supplier—TransformerGrid—insisted on confirming the vector group, rather than just quoting the cheapest standard unit, gave the design institute immense confidence in the supplier's engineering competence and manufacturing reliability.

Common RFQ Mistakes with Delta and Wye Transformers

Based on Victor's experience and industry best practices, buyers should avoid these six common mistakes when requesting a three-phase transformer quotation:

1. Omitting the Vector Group: Failing to specify the exact vector group (such as Dyn11, Ynd11, or Yyn0). The vector group defines the winding connections and the phase shift between primary and secondary voltages.
2. Forgetting Grounding Requirements: Not clearly stating whether the system is solidly grounded, resistance grounded, or ungrounded. This dictates how the transformer neutral must be designed.
3. Confusing Line-to-Line vs Line-to-Neutral Voltages: Simply stating "400V" can be ambiguous. Buyers must specify if they need a Wye secondary capable of providing a line-to-neutral voltage (e.g., 400Y/230V), or failing to specify if you need a step up or step down transformer.
4. Ignoring Phase Shift in Parallel Operations: If the new transformer will operate in parallel with existing units, it must have the exact same vector group and phase shift. An incompatible phase shift will result in destructive circulating currents.
5. Failing to Specify Neutral Bushings: Assuming a neutral bushing is included by default. If a Delta secondary is mistakenly built, there will be no physical neutral point to ground or connect to.
6. Misunderstanding Local Grid Standards: Assuming that the standard configuration in the manufacturer's country matches the standard configuration of the destination country's utility grid.

Delta, Wye and Step-Up Transformers for Solar and Wind Projects

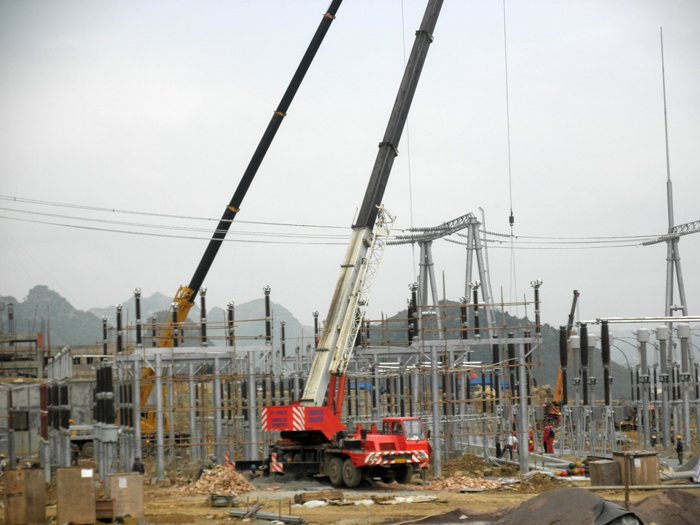

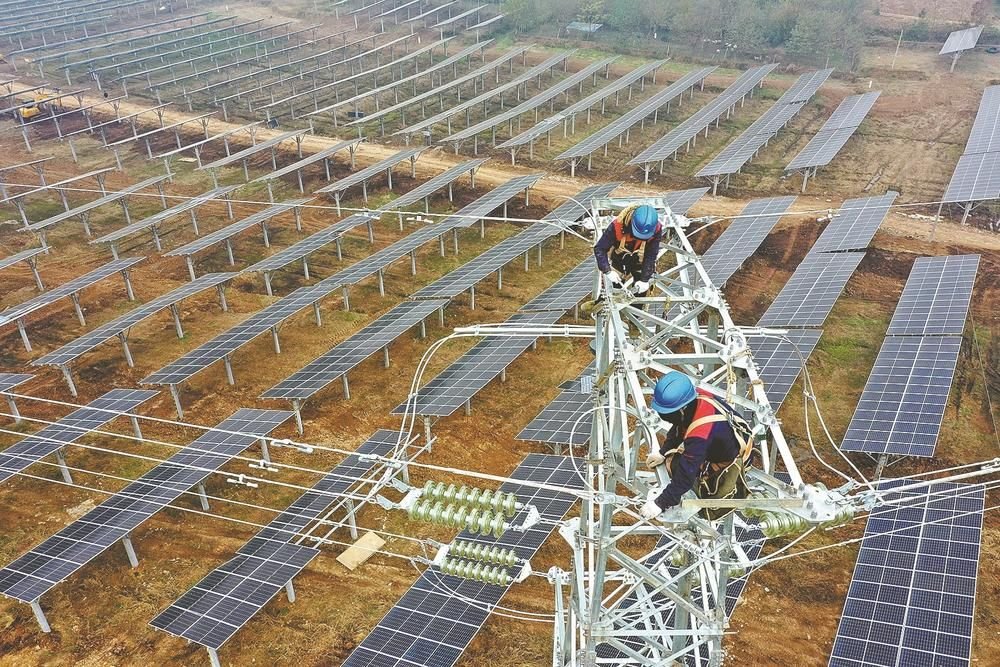

The importance of connections extends beyond standard distribution. In renewable energy projects, such as solar farms and wind parks, the step-up transformers face unique challenges. These transformers take low voltage from inverters and step it up to high voltage for the transmission grid.

Solar step-up transformers often utilize a Wye-Delta (Yd) configuration. The low-voltage Wye connection provides a grounded neutral for the inverters, while the high-voltage Delta connection traps harmonic currents generated by the power electronics, preventing them from polluting the wider utility grid. Incorrectly specifying the delta and wye arrangement for a renewable project can lead to severe grid non-compliance and rejected interconnection applications.

What Buyers Should Send Before Requesting a Transformer Quotation

To ensure a fast, accurate, and technically sound quotation, buyers must provide a comprehensive specification package. This should include:

• The exact capacity (kVA) and frequency (e.g., 50Hz or 60Hz).
• Detailed primary and secondary voltages (specifying line-to-line and line-to-neutral values).
• The required vector group (e.g., Dyn11).
• A single-line electrical diagram of the facility.
• Specific local utility standards or design institute requirements regarding grounding and neutral connections.

How TransformerGrid Helps Review Transformer Connection Requirements

At TransformerGrid, we do not blindly quote based on incomplete data. Our engineering team conducts a thorough pre-quotation review of every inquiry. If a buyer like Victor submits an RFQ without a vector group or grounding specification, we immediately engage in a technical consultation.

We cross-reference the requested specifications with local grid standards and assist the buyer in clarifying requirements with their local design institutes. This proactive approach ensures that every pole mounted and pad mounted transformer we manufacture is fully compliant, safe to energize, and perfectly matched to the customer's exact electrical infrastructure.

Conclusion

The internal connections of a three-phase transformer—whether Delta or Wye—are the foundation of safe and reliable electrical distribution. As Victor's experience demonstrates, treating utility transformer procurement as a simple hardware purchase is a high-risk strategy. By understanding the critical role of vector groups, grounding, and neutral requirements, and by partnering with a manufacturer committed to rigorous engineering review, buyers can confidently specify and procure transformers that ensure seamless grid integration and long-term operational success.
